| Tank Features | Carbon Welded Steel Tanks | Factory Coated Bolted Steel Tanks | Corrugated Galvanized Bolted Steel Tanks |
|---|---|---|---|
| 1000's of tank installations in the market | ✔ | ✔ | ✔ |
| SteelCoreTank Manufacturing Primary Product Line | ✔ | ||
| STRUCTURAL DESIGN | |||
| Designed to IBC and ASCE7 Structural codes for water storage | ✔ | ✔ | ✔ |
| Site Specific Structural Calculations- Wet Stamped | ✔ | ✔ | ✔ |
| Detailed Submittal Drawings- including As Built Drawings | ✔ | ✔ | ✔ |
| Seismic Anchoring Designs | ✔ | ✔ | ✔ |
| High Wind Designs | ✔ | ✔ | ✔ |
| COATINGS | |||
| Exterior Color Available | ✔ | ✔ | ✔ |
| Uses Field Applied Interior & Exterior Coatings | ✔ | ||
| Uses Thermoset Interior & Exterior Powder Coatings | ✔ | ||
| Uses Zinc Galvanized Steel - G115 & G140 | ✔ | ||
| Uses Mastic Sealants to seal panels to achieve water tight structure | ✔ | ✔ | |

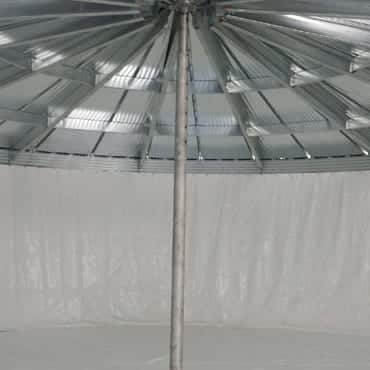

| Uses 30 mil - 60 mil Flexible Membrane Liners as Water Sealant | ✔ | ||
| Water has direct constant contact with flexible membrane liner | ✔ | ||
| Water has direct constant contact with tank coating | ✔ | ✔ | |
| FITTINGS & APPURTENANCES | |||
| ASTM Bolts | ✔ | ✔ | ✔ |
| Flanges - ANSI 150 # | ✔ | ✔ | ✔ |
| Flange - Wall Penetrations | ✔ | ✔ | ✔ |
| Flange - Floor Penetrations | ✔ | ✔ | ✔ |
| Includes OSHA approved ladders, cages, appurtenances | ✔ | ✔ | ✔ |
| Deck Manways - Lockable | ✔ | ✔ | ✔ |
| Side Shell Manways - 24" & 36" | ✔ | ✔ | ✔ |
| Roof Vent - 24" - 42" | ✔ | ✔ | ✔ |
| Liquid Level Gauge Board &Target | ✔ | ✔ | ✔ |
| Catwalks & Other Specialty Systems | ✔ | ✔ | ✔ |
| Suction Flanges with Anti Vortex Plate- NFPA22 | ✔ | ✔ | ✔ |
| Partial & Full Guardrails Available | ✔ | ✔ | ✔ |
| US GALLON CAPACITIES | |||
| Capacities up to 2.9 Million Gallons | ✔ | ✔ | ✔ |
| DESIGN APPLICATIONS | |||
| NFPA 22 equivalent - Fire Protection | ✔ | ✔ | ✔ |
| Potable Water Storage - NSF61 Certified Coatings/Liners | ✔ | ✔ | ✔ |
| Waste Water Storage | ✔ | ✔ | ✔ |
| OTHER OPTIONS | |||
| Insulation Systems - Interior | ✔ | ||
| Insulation Systems - Exterior | ✔ | ✔ | ✔ |
| Low Cost Quick Lead Times Fast Installation Times Long Warranties More Choices | ||
|---|---|---|
| BENEFITS | HOW? | WHO? |
| LOWER COST: Up to 50% more cost effective than other AWWA steel tank choices. | Low Cost Materials, Simple Installations | Schools, Municipalities, Engineers, Architects, End Users |
| QUICK LEAD TIMES: Lead times can be as fast as 2-4 weeks for material fabrication. | Specialty Manufacturing facilities allow for fast turn around. Steel is previously Zinc Galvanized prior to manufacturing. | Schools, Municipalities, Engineers, Architects, End Users |
| FAST INSTALLATION TIMES: Short lead times due to lighter weight materials and ease of installation due to manufacturing designs. Less equipment needed. | Lighter weight materials. Heavy equipment like cranes or booms- not required. Massive flexible membrane liner creates water tight seal. Welded to fit interior of tank prior to arrival onsite. | Schools, Municipalities, Engineers, Architects, End Users |
| LONG WARRANTIES: Up to 30 Year Warranties are available. | Zinc Galvanized Sheets – high corrosion resistance. Flexible Membrane Liner protects steel from constant water contact. | Schools, Municipalities, Engineers, Architects, End Users |
| MORE CHOICES: More Sizes, Flexible Membrane Liners, Coatings & Roof Style Options. | You deserve to have more options for steel tanks for potable water. | Schools, Municipalities, Engineers, Architects, End Users |
